Rig Kit 1 (3m)

This is our smallest rig we sell.

THE RIG KITS ARE A COMPLETE SOLUTION HOWEVER IF THERE ARE ITEMS INCLUDED THAT YOU ALREADY HAVE YOU CAN MAKE UP A CUSTOM RIG FROM THE ACCESSORIES

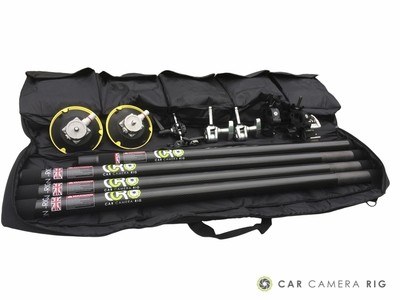

The kit comprises of:

1 x 3.0m Carbon Fibre Boom.

2 x sections, each section of the boom is 1.5m length plus a 200mm internal sleeve making it 1.7m in length.
The boom is 56mm in diameter. 3mm wall thickness with multiple carbon fibre layers to make this the stiffest boom available on the market today.

At 3.0m the rig will easily support any format camera and suitable focal length lens from dx format Dslr to medium and large format camera's, can be used without use the stabilizer spar kit, making the Car Camera Rig 'The' go to rig.

2 x Pro Mount Vacuum Cups inc 16mm Swivel Adapter.

(each cup provides 32kg's load rating and has a 3\8" threaded fitting).

!! Please note these are not the same as the manfrotto 241 pump cup with a 2kg load rating !! The forces generated from using a long rig cause the 2kg load rated cups to fail damaging your camera, rig and car! It is just not worth taking the risk.

2 x 6" Heavy Duty Baby Pin Extension Bar.

2 x 3" Heavy Duty Baby Pin Extension Bar.

5/8"/16mm pin to 38" female thread, this is a seriously heavy duty bar at 20mm at its base. Can be added to vacuum cups or camera bracket.

2 x 12" Carbon Fibre Extension bars.

1 x 18" Carbon Fibre Extension bar.

1 x 24" Carbon Fibre Extension bar.

5/8"/16mm pin to 38" female thread, these are seriously lightweight extension bars Can be added to vacuum cups or camera bracket.

3 x 16mm Female Spigot Adapters.

Turns any extension bar into a female connectable bar, can be used for vacuum cup mounting and on the double ball joint camera bracket also to allow more mounting options. The later will also make the boom smaller in the image giving more usable background making post proccessing easier.

3 x 20kg Super Clamps.

New upgraded super clamps with 20kg load rating, that's 5kg's more than before!

13mm-55mm clamps for clamping onto the boom.

1 x Double Ball Joint Camera Bracket.

The smallest and lightest camera mount available, attach a female spigot adapter allowing you to add various length extension bars giving you more mounting postions.

1 x Rigcase.

This hard case solution fits everything inside keeping all your kit in 1 place ready to go work.

Can be checked as baggage onto a plane or in/ on the roof of your car.

1 x rollup Carry Bag.

Ballistic nylon fabric bag with tube pockets to carry, store and protect the car camera rig boom sections. Holds upto 6 seperate boom sections.

Dimensions (LxW):

175cm x 60cm (laid flat) | Internal sleeve diameter 5.5cm x 6.

1 x stabilizer spar kit.

(comes complete with carbon fibre spar and dyneema line with stainless steel spring clips).

1 x Velcro kit.

The velcro is a non destructive, extra piece of mind solution and helps with boom section rotation.

THE RIG KITS ARE A COMPLETE SOLUTION HOWEVER IF THERE ARE ITEMS INCLUDED THAT YOU ALREADY HAVE YOU CAN MAKE UP A CUSTOM RIG FROM THE ACCESSORIES
